Halocode
Wireless single board computer
Makeblock Halocode is a single board computer with built-in Wi-Fi. Designed for programming education, its compact design integrates a broad selection of electronic modules. Pairing with block-based programming software mBlock, Halocode offers all sorts of opportunities to experience AI & IoT application with just a few clicks; it makes creation easy and fun.
Software
mBlock
Programming tool bridging physical and digital worlds
Scratch & Python | Compatible with abundant hardware | AI & IoT | Education resource | mBlock Community
Specifications
Processor
Core : Xtensa dual-core 32-bit LX6 microprocessor
CPU Clock Speed：240Mhz
Communication
WiFi / Bluetooth / Micro-USB Port
Onboard Memory
Flash ROM 440K, RAM 520K
Expanded Memory
SPI Flash 4MB, PSRAM 4MB

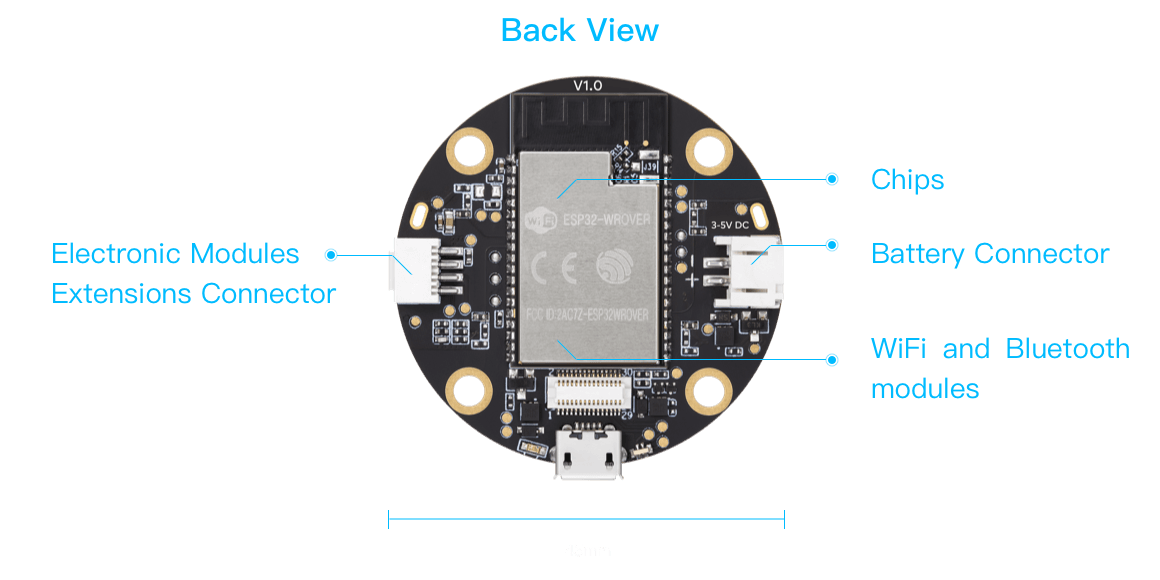

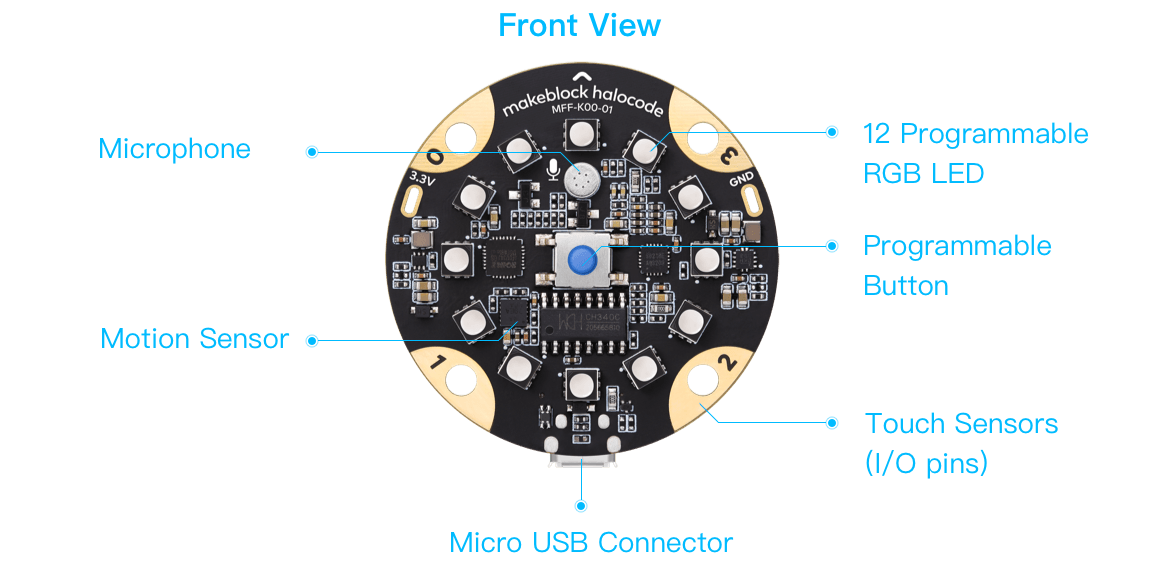

Onboard Components
12 RGB LED, Motion Sensor, Microphone, Button, 4 Touch Sensors ( I/O pins）
Operating Voltage
3.3V
Product Dimension
45mm in diameter
Net Weight
10g
Product List
Halocode
Halocode Standard Kit
Halocode × 1
Halocode × 1
Quick Start Guide × 1
Quick Start Guide × 1
Sample Project Guide × 2
Sample Project Guide × 2
AAA Size Battery Holder × 1
AAA Battery × 3
Copper Foil Tape × 1
Hook & Loop Strap × 1
Micro USB Cable × 1
Hook & Loop Fastener × 4
Alligator Clip × 4
